Review 6.0 mm 3D Scanning Marker for 3D Scanner, 3D Tracking Dot Reference Point Markers for 3D scanning, Diffuse Reflection Markers for 3D Scanner (1000)

Page Contents

Details: 6.0 mm 3D Scanning Marker for 3D Scanner, 3D Tracking Dot Reference Point Markers for 3D scanning, Diffuse Reflection Markers for 3D Scanner (1000)

Brand: LEDGM

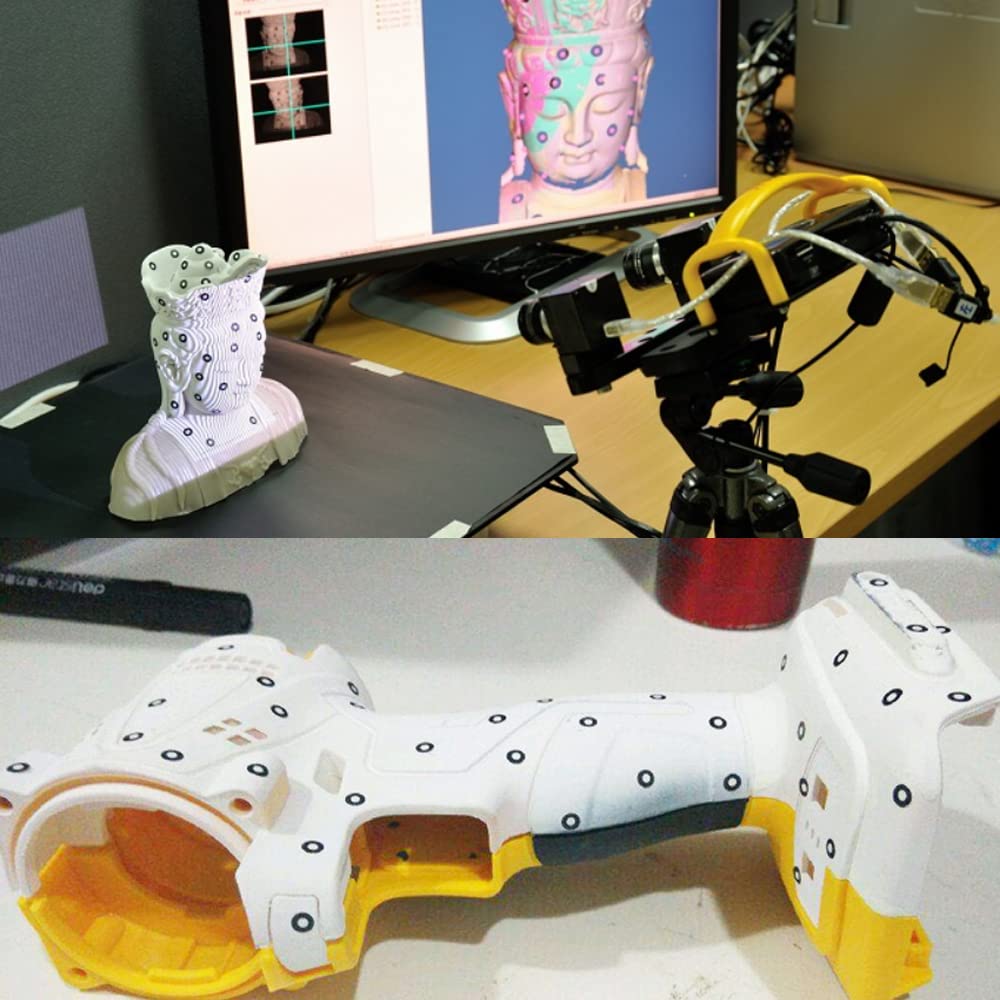

What is a 3D marker? 3D Scanning marker is a small sticker or magnet with an image of a black or white dots printing on it. A 3D scanner uses these “high-contrast”objects to determine its location. Markers are usually applied on (or near) the object being scanned, to increase accuracy and repeatability of 3D data. Read more 3D Scanning Markers, Why are they important ? Markers reduce the possibility of losing tracking during scanning.in another word to say,By using markers, you do not lose tracking during scanning,so the process is faster and predictable.They also ensure high accuracy and repeatability of results. Read more What else should I know about markers? Here are a few tips for scanning with your scanners and markers. whatever your laser scanner in industrial scanning or infrared white scanner in consumer 3D scanning. At any given time during scanning, the scanner needs to see minimum 3 markers in every frame. When it doesn’t, scanning will automatically stop. Although 3 markers per frame is the minimum, the optimal number is 5. That is because in certain circumstances, even if the marker is visible to the camera, the software doesn’t recognize it as such. When affixing markers, apply them on flat areas of the object and not on sharp edges of the object. Also, that the scanner might sometimes not see a marker when looking at it from an awkward angle. Why do we need 3D Scanner marker points ? Markers are needed for accurate and easy 3D scanning. They actually solve two separate issues: difficulty during scanning and difficulty attaining high accuracy on large object Without markers, the scanner will lose its alignment during scanning and the software will not know how Frame1 is supposed to be aligned to Frame2, Frame2 to Frame3 and so on… The software will try to align all frames using the objects’ unique geometry. However, this guesswork doesn’t always produce great results and in many cases, especially on objects with large flat surfaces and no unique geometry, even the most sophisticated algorithm will fail. Read more When to use 3D Scanning markers? You would need markers to scan a flat surface with little or no geometry, and black color objects. When not to use 3D Scannr markers? You don’t need markers if you are scanning an object with lots of geometry like humans or statues. How to use 3D markers when scanning small item? For smaller items,you can place markers around the object,instead of on the object. Why does these reflective Dot Sticker make scanning easier? By using markers, you do not lose tracking during scanning,so the process is faster and predictable Read more How to select what size is the best to fit your for 3D scanning ? The size of the tracking stickers for 3d scanner depends on which 3D scanner and measuring volume is used for measuring your objects,Basically to say: the larger the item, the bigger the points have to be applied. Reflective stickers 3D markers for 3D Scanning Specification: Inner diameter: 6.0 mm Outer diameter: 10.0 mm Round, on adhesive foil as tear-off pad 50 single point marker each sheet,total 20 sheet How Far apart should they be placed？ Depending on what accuracy you request, markers should be placed randomly approximately 5cm apart for Minimum 10cm for Medium and 15cm for Maximum. 3 pcs markers in each frame is the absolute minimum, but 5 pcs markers are recommended to ensure smooth operations. Read more What you will get ? 1 pack 20 sheet, Total 1000 pcs Reference Points,Tracking Dots 6 mm for your 3D scanning. Read more

Advantages

Products can be returned

Notice

Is an online purchase
Delivery may be delayed in some areas.

Buyer Guide 3D Scanners

3D scanners are an important tool for creating a digital copy of an object to use as a template. They come in all shapes and sizes, from handheld scanners that can copy small objects, to larger scanners that scan large objects, such as standard-sized cars.

Consider the object to be scanned (size, shape, material).
Consider the purpose of the scan. You may scan an object for personal use, or for a group project, in which case you’ll want to look for scanners that work well for both small and large objects, and that work with different materials.
Consider the scanner’s features.
Consider your intended environment. For example, if you’re scanning small objects, a handheld scanner may be all you need. But if you’re scanning something large or hard to scan, consider a large scanning device.
Consider your budget. Scanners can be pricey, so you’ll want to consider your starting budget when deciding which scanner is right for you.
Consider your level of expertise. If you’re just starting out, you may want to invest in a handheld scanner. That’s cheaper than a large scanning device and requires no prior knowledge.
Consider support. Some scanners have built-in support, while others don’t. You may want to consider support options if you’re new to 3D scanning.

How to choose 3D Scanners

There are a lot of 3D scanning options on the market today, so how do you choose the right one for your business? We broke down the factors you should consider before making a purchase:

How large is the area you want to be scanned? If you want to scan large areas, you’ll probably want to invest in a larger scanning device that has a greater resolution.
How many surfaces are in the area you want to scan? If you want to scan an entire building, having multiple scanners will allow you to scan different sections of the building and stitch them together.
How accurate is the scan? The accuracy of the scan will determine how realistic your end products will be.
How much data do you need? For 3D scanning, the more data you collect, the more usable the final products will be.
How accurate do you need the final model to be? If you want high accuracy, you may want to invest in more expensive scanning devices that can capture extremely fine details and textures.
What type of end product do you need? If you need models, we recommend choosing a 3D scanning device that can produce files that can be used to create 3D models. If you need objects, we recommend choosing a 3D scanning device that can produce files that can be used to create physical objects.
How far away is the area you want to scan? Some 3D scanning devices, like laser scanners, require external light sources and reflectors to function properly.
How long will the scan take? Some 3D scanning devices, like 3D scanners, require users to stand in a specific location while the scan is taking place.
How accurate do you need the scan to be? The depth of the scan will determine the accuracy of the models.
What material do you need to scan? To effectively scan an object, the material must be conductive.

How to maintain 3D Scanners

Before purchasing a 3D scanner, its important to know the basics of maintenance and upkeep.

How often should I clean my 3D scanner? Its always a good idea to regularly clean your scanner, but make sure to follow manufacturer instructions for specifics.
How long will my 3D scanner last? Many people falsely believe that 3D scanners last for years, but in reality, they need to be replaced after a couple of years. Most 3D scanners have a life expectancy of 3 to 5 years.
How often should I calibrate my 3D scanner? Many manufacturers suggest calibrating your scanner at least once every month. While some people believe that calibrating your scanner helps to improve its accuracy, this isnt always the case.
Do I need to calibrate my 3D scanner after performing repairs? Many 3D scanners feature an alignment tool that automatically calibrates the scanner after performing repairs.
Will software updates fix calibration issues? Many 3D scanners have firmware updates that can fix calibration issues.
